HYS Two Way Radio Walkie Talkie Co., Ltd. specializes in developing and manufacturing different professional two-way radio, and two way radio accessories: two way radio earphones, microphone, headset, rubber and metal telescope two way radio antenna, and all kinds of two way radio battery pack, battery case ,charger, programming cable, housing, leather case, battery pack, belt clip and other accessories, and all kinds of communication antennas: vehicle antenna, car whip antenna, CB antenna , Omni directional fiber glass antenna, directional Yagi Antenna, wireless public phone antenna, WLAN Antenna, DVB-T antenna, broadband Omni antenna, signal Booster Amplifier, Repeater, sector Panel Antenna ,car whip antenna Mounting Bracket, GSM&amp;CDMA antenna and other communication device antenna. Our company locates in famous emigrant home Quanzhou city, China.We have 20 communication experts and 350 staffs. We have ISO9001:2000 certified quality management system. The products are sold well to America, Europe, Southeast Asia, Africa, and other thirty countries. Our products already win a good appraise, also are very popular in domestic market based on the hi-end technology, perfect management, excellent service for through the process of the first-class designing producing and packing. We aim to "Managing with the headstream, offering the superior quality products and best service in time to satisfy the customers". 0ur service attitude is "the clients are our company’s life, the clients business is ourselves, and we are on the same boat”. The company general manager leads the staff hope to "Cooperation for developing together, since for mutual benefits" with any customers in various countries and regions.

HYS Two Way Radio Walkie Talkie Co., Ltd.


Main Features: 1. Time-Out-Time (TOT).  2. Battery Saver. 3. Busy Channel Lockout (BCL). 4. Low?power notification function. 5. Scrambling Function (Voice Encryption).  6. Pressure Expansion Function (Noise reduction). 7. Scanning Function. 8. QT/DQT.  Standard Accessories: 1*Transceiver. 1*Instruction manual. 1*Lanyard. 1*USB cable. 1*AC Adapter.  Optional Accessories: 1*Earphone. 1*Programming Cable / Programming Software. 1*Earphone jack (3.5mm). 1*Micro USB jack.



Frequency range
400490mhz (But we just do frequency spacing 20mhz),such as 400-420mhz, 420-440mhz


Operating voltage
DC3.7 (Li-ion battery)


Memory channels
16 (can be extended to 99 channels)


Working mode
Co-channel or dis-channel simplex


Weight
100g


Output power
2w


Modulation mode
16K F3E


Maximun frequency
≤5KHZ


Sparious radiation
≤7.5µW


Transmitting current
≤1000mA


Sensitivity
≤0.16µV (12dB SINAD)


Squelch sensitivity
≤0.2µV


Intermodulation rejection
50dB


Audio output power
≤300mA


Receiving current
≤100mA


Squelch standby
20mA






Coloful Mini Kids Walkie Talkie

Main Features: 1. Digital FM radio. 2. Dual frequency Display. 3. Arbitrarily selection of working modes. 4. Dual Frequency standby in any band. 5. DTMF signaling system. 6. Alarm (Distant and spot alert). 7. Inspection,Monitor,Stun and Kill. 8. 50 Groups CTCSS and 105 Groups DCS. 9. Non-standard CTCSS (Can be edited arbitrary between 60Hz and 259.9 Hz). 10. TOT (Transmit Over Timer). 11. Busy channel lockout. 12. Auto backlight and keyboard lock. 13. ANI code display(caller ID). 14. Ring alert function. 15. DTMF sidetone switch. 16. Three kinds of scan mode (TO/CO/SE). 17. Multi-kind mute modes (QT/AND/OR). 18. Frequency shift direction selectable in frequency mode. 19. Frequency, channel and menu fast search function. 20. 128 memory channels. 21. Reverse Frequency Function. 22. PC Programmable.  Technical Specifications:  General: 1. Frequency range: 87-108MHz (FM), 136-174MHZ (VHF), 400-480MHZ (UHF). 2. Memory channels: 128. 3. Bandwidth: 25kHz (wide), 12.5kHz (narrow). 4. Net Weight: 1200g. 5. PLL channel step: 5kHz, 6.25kHz. 6. Operating voltage: 13.8 VDC±15%. 7. Operate temperature: –30°C to 60°C. 8. Dimensions: 160×43×137mm. 9. Current drain: Standby ≤0.4A, Receive ≤1.0A, Transmit≤0.8A.  Transmitter (Measurements made per TIA/EIA-603): 1. RF output power: 45W (VHF),35W (UHF). 2. Spurious and harmonics: 70dB. 3. Modulation: 16K0F3E (wide), 11K0F3E (narrow). 4. FM Modulation Noise: 45dB (wide), 40dB (narrow). 5. Audio distortion: ≤3%. 6. Frequency Stability: ±2.5ppm.  Receiver (Measurements made per TIA/EIA-603): 1. Sensitivity(12dB SINAD): 0.18uV (wide), 0.22 uV (narrow). 2. Selectivity: 70dB (wide), 60dB (narrow). 3. Inter modulation: 70dB (wide), 60dB (narrow). 4. Spurious response: 75dB. 5. Audio power output: 4.0W/8Ω. 6. Frequency Stability: ±2.5ppm.

FM Mobile Vehicle Transceiver

Main Features: 1. This model can be amplify 100-150W for HF radio.  2. Turn on/off switch. 3. Auto receive/transmit switch. 4. Electrode reversal protect.  Technical Specifications: 1. Frequency range: 3-30MHz (HF). 2. Operate voltage: 12-14 Vcc. 3. Input current/POWER: 14-20 A. 4. Input power: 3-5 W. 5. Input power SSB: 2-10 W. 5. FM Output power: PEP Max 150W (Input 10W). 6. AM Output power: PEP Max 150W (Input 10W). 7. Output power SSB: 300 W(Input 10W) PEP Max, 250W (Input 5W ) PEP Max. 8. Working mode: FM- AM-CW-SSB. 9. Blown fuse: 2×12 A. 10. Dimension: 109×225×35 mm. 11. Net weight: 750 g. 12. Compact high power all mode amplifier with automatic TX/Rx switch and On/Off switch. 13. Electronic switch. 14. Inversion polarity protection.

HF Portable Radio Amplifier

Main Features:  1. 16channels. 2. 10W/5W/2W Power Switch with Side-key operation. 3. Chinese/English Voice Announcement. 4. Wide/Narrow Bandwidth Selection 12.5KHz/25KHz. 5. CTCSS&amp;DCS non-standard code. 6. Battery Saver. 7. Low Battery Alert. 8. Check battery capacity by handheld operation and will annouce the capacity in current status. 9. VOX on/off, VOX level setting, VOX delay time setting. 10. DTMF/PTT ID. 11. Busy Channel Lockout. 12. Scan, Auto scan, Priority Channel Scan, Scan Add, Scan Delete. 13. TX Power Level Adjustment by hand operation. 14. Monitor / Monitor Momentary. 15. Squelch level report, Squelch level adjustment. 16. TOT function. 17. Emergency Alarm. 18. 2 Tone/5 Tone. 19. Remote Kill,Stun,Activate &amp; Revive. 20. Tail Tone Eliminate. 21. Auto Power Off. 22. Wire Clone. 23. PC Software Program.

Long Range IP67 Waterproof Walkie Talkie

Main Features:  1. Frequency range: 400 to 470MHz. 2. Output power: 3W. 3. Operating temperate: -20°C to +50°C. 4. Operating voltage: DC 3.6V (Li-ion). 5. Simple model, no display, no keypad, new designed style, exquisite?appearance, sell at a low price, with common functions. 6. Push to talk function, monitor function. 7. voice prompt. 8. time out timer. 9. battery save function. 10. low battery warning function. 11. built-in QT and DQT.  Technical Specifications:  General: 1. Frequency Range: UHF: 400-470MHz. 2. Memory Channels: 16. 3. Channel Spacing: 25/12.5KHz. 4. Working Mode Co-channel sordis-channels simplex. 5. Voltage: DC7.2V. 6. Battery; 1000mAh/1500mAh/1800mAh/2200mAh (Li-ion). 7. Average batteryl fe (at5/5/90 duty cycle with battery saver) 1500mAh (Li-ion) About 15 hrs. 8. Frequency Stability: ±2.5ppm. 9. Operating Temperature: -20°C/+50°C. 10. AntennaI mpedance: 50Ω. 11. Dimensions (H×W×D)(mm) (W/Battery, W/oAntenna) 100mm × 60mm × 34mm.  12. Weight: Appro 200g.  Transmitter: 1. Power Output: 2-3W. 2. Maximum Deviation: ≤5KHz. 3. Audio Distortion: ≤3%. 4. Modulation Characteristic: +3dB—-3dB. 5. Adjacent Channel Power: ≥65dB. 6. Spurious Radiation: ≤7.5μW. 7. Occupied Bandwidth: ≤16KHz. 8. S/N: 40/34dB.  Receiver: 1. RF Sensitivity: &lt;0.2μV. 2. Audio Distortion: ≤3%. 3. Audio Response: +2dB—-10dB. 4. Adjacent Channel Selectivity: ≥60dB. 5. Intermodulation Rejection: ≥60dB. 6. Spurious Response: ≥60dB. 7. Block Characteristic: ≥85dB/. 8. S/N: 40/34dB.

Mini Ham Walkie Talkie

Main Features: 1. Quad Bands Operation. 2. Over 800 Memory Channels. 3. CTCSS/DCS Built-in; DTMF Function. 4. Convenient Access To WIRES and Other Internet-linking Systems. 5. Cross-band Repeat Capability. 6. Work Mode: U &amp; V,U &amp; U,V &amp; V,V &amp; U.  Technical Specifications:  General: 1. Frequency Range: RX: 28.000-29.700MHz, 50.000-54.000MHz, 108.800-180.000MHz (108.800-136.995MHz FM), 320.000-480.000MHz, 700-985MHz (Cellular Blocked). TX: 28.000-29.700MHz, 50.000-54.000MHz, 144.000-148.000MHz, 430.000-450.000MHz. 2. RF Power: 50/20/10/5W (29/50/144MHz), 35/20/10/5W (430MHz). 3. Operating Modes: F3, F2, F1. 4. Frequency Step: 5/10/12.5/15/20/25/50kHz.  5. Power Supply: 13.8V (±15%). 6. Frequency Stability: ±2.5PPM. 7. Operating Temperature: -20°C to 60°C. 8. Antenna Impedance: 50Ω. 9. Dimensions (W×H×D): 140×41.5×168mm. 10. Weight: 1070g.  Transmitter: 1. Power Output: 50/20/10/5W (29/50/144Mhz), 35/20/10/5W (430Mhz). 2. Maximum modulation: ±5khz (wide band). 3. Frequency Deviation: ±2.5khz (narrow band). 4. Out-of-band radiation: ≤ -69dB (29Mhz≤-50dB). 5. Modulation Distortion: &lt;3%. 6. Microphone Impedance: 2KΩ.  Receiver: 1. Sensitivity: ≤0.2μV (12dB SINAD). 2. Circuit type: Second type difference frequency outside. 3. IF-FRE: 45.05Mhz/450Khz (left), 47.25Mhz/450Khz (right). 4. Selectivity: 12Khz/30Khz. 5. The biggest audio output: 2W (8Ω). 6. Audio Output Impedance: 4-16Ω.

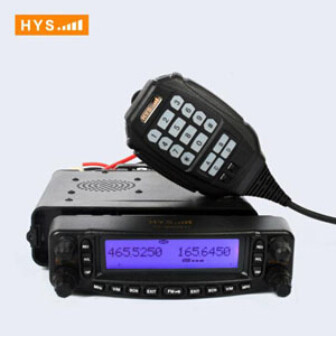

Quad Band Mobile Car Radio

Main Features: 1. Quad Bands Operation. 2. Over 800 Memory Channels. 3. CTCSS/DCS Built-in; DTMF Function. 4. Convenient Access To WIRES and Other Internet-linking Systems. 5. Cross-band Repeat Capability. 6. Work mode: U &amp; V,U &amp; U,V &amp; V,V &amp; U.  Technical Specifications:  General: 1. Frequency Range RX: 26.000-33.000MHz, 47.000-54.000MHz, 108.800-135.000MHz, 136-180MHz, 320-512MHz, 700-950MHz (wireless not include,108.800-136.995MHz FM). 2. TX: 26.000-33.000MHz, 47.000-54.000MHz, 136.000-174.000MHz, 400.000-470.000MHz. 3. RF Power: 50/20/10/5W (29/50/144MHz), 35/20/10/5W (430MHz). 4. Operating Modes: F3, F2, F1. 5. Frequency Step: 5/10/12.5/15/20/25/50kHz. 6. Power Supply: 13.8V (±15%). 7. Frequency Stability: ±2.5PPM. 8. Operating Temperature Range: -20°C to 60°C. 9. Antenna Impedance: 50Ω. 10. Dimensions (W×H×D): 140×41.5×168mm. 11. Weight: 1070g.  Transmitter: 1. Power Output: 50/20/10/5W (29/50/144Mhz), 35/20/10/5W (430Mhz). 2. Maximum modulation: ±5khz (wide band). 3. Frequency Deviation: ±2.5khz (narrow band), 4. Out-of-band radiation: ≤ -69dB (29Mhz≤-50dB). 5. Modulation Distortion: &lt;3%. 6. Microphone Impedance: 2KΩ.  Receiver: 1. Sensitivity: ≤0.2μV (12dB SINAD). 2. Circuit type: Second type difference frequency outside. 3. IF-FRE: 45.05Mhz/450Khz (left), 47.25Mhz/450Khz (right). 4. Selectivity: 12Khz/30Khz. 5. The biggest audio output: 2W (8Ω).

Quad Band Mobile FM Transceiver

Main Features: 1. VHF/UHF dual reception. 2. DTMF encode/decode (8 groups selectable). 3. 7 kinds of backlight selectable. 4. Scrambler. 5. FM radio built-in. 6. 4 kinds of burst tone selectable (1000Hz/1450Hz/1750Hz/2100Hz). 7. Large LCD display. 8. 50 Groups CTCSS &amp;1 05 Groups DCS Encode/Decode. 9. Front panel switches &amp; controls. 10. Compandor. 11. Cross band repeater capability. 12. Input frequency directly through MIC. 13..Air - band receiving.  Technical Specifications:  General: 1. Operate Frequency: 136-174MHz. 400-470MHz. 2. Standard Frequncy: 144-148MHz, 430-450MHz. 3. Air band (RX): AM109-135.995MHz. 4. Memory channels: 128. 5. Bandwidth: 25KHz (wide), 12.5KHz (narrow). 6. PLL channel stepping: 5/6.25/10/12.5/25 KHz. 7. Operating voltage: 13.8VDC±15%. 8. Current drain: Less than 0.4A (standby), Less than 8.0A (Transmit). 9. Operate temperature range: –20°C  to 60°C. 10. Weight: 1200g. 11. Dimensions: 168×41.5×140mm.  Transmiter: 1. RF output power: VHF 40W/20W (144MHz), UHF 35W/20W (440MHz). 2. Spurious and harmonics: 70dB. 3. Modulation: 16K0F3E (wide), 11K0F3E (narrow). 4. FM Modulation Noise: 45dB (wide), 40dB (narrow). 5. Audio distortion: Less than 3%. 6. Frequency Stability: ±2.5ppm.  Receiver: 1. Sensitivity (12dB SINAD): 0.18uV (wide), 0.22 uV (narrow). 2. Selectivity: 70dB (wide), 60dB (narrow). 3. Intermodulation: 70dB (wide), 60dB (narrow). 4. Spurious response: 75dB. 5. Audio power output: 2.0W/8Ω. 6. Frequency Stability: ±2.5ppm.

Repeater Mobile Radio

Main Features: 1. Busy Channel Lock (BCL). 2. Monitor. 3. CTCSS, DCS. 4. Scrambler. 5. Voice Prompt. 6. 2200Mah High Capacity Li-ION Battery Pack.



Frequency Range
400-480MHZ
Frequency combination
Phase lock loop frequency synthesize


Memory Channels
16 Channels
Operating Voltage
DC7.4V


Channel Spacing
12.5/25KHz
Battery Capacity
2200MAH (Li-ion battery)


Frequency Stability
±2.5PPM
CTCSS/DSC
CTCSS:50 DCS:105 Selectable


Antenna Impedance
50Ω
Operating Temperature
-10℃to +60℃


Weight (approx.)
290g (Except battery and antenna)
Dimension (approx.)
130×59×37.5mm (Except Antenna)


Transmitter (Testing under TIA/EIA-603 standard）


Output Power
10W (High), 5W（Low)
Modulation Mode
16K￠F3E


MAX. Frequency Deviation
≤±5.0KHz
Frequency Stability
±5ppm


Spurious Radiation
≤60dB
Residual Modulation
≤-35dB


Modulation Distortion
≤5% (300-3000Hz)
FM Noise
≤-40dB


Audio Distortion
≤5%
CTCSS Frequency Deviation
0.75KHz±50Hz


Receiver (Testing under TIA/EIA-603 standard)


Sensitivity
≤0.20uV
Operating Bandwidth
≥±7KHz


Squelch Sensitivity
≤0.15uV
Frequency Stability
±5ppm


Adjacent channel selectivity
≥60dB
Spurious Rejection
≥60dB　　


Intermodulation Rejection
≥60dB　
FM Noise
≤-45dB


Audio Power
≥600mW
Audio Distortion
＜5%





UHF Scrambler Two Way Radio

Technical Specifications: 1. Frequency: 136-174MHZ (Any 10MHZ frequency space or frequency point selectable in 136- 174MHZ, such as 140-150MHz ,150-160MHz,160-170MHz). 2. Frequency space: 10MHz. 3. Supply: 12-14 Vcc. 4. Input energy/power: 8-11 A. 5. Input power: 3.0-5.0 W. 6. Output power: PE MAX 50W. 7. Output power: level 1. 8. Size: 129×125×35 mm. 9. Weight: 550 g.
